EV Oil-lubricated Screw Air Compressor (single air compressor )

EV Oil-lubricated Screw Air Compressor (single air compressor )

Chanun developed and produced 6 bearings, head and flange integrated, Mo taper connection of heavy-duty integrated head, the motor used by our own molded permanent magnet motor (more than 95% efficiency), to IE4 standards (national energy efficiency)

WhatsApp:

86 13862059949

Product description

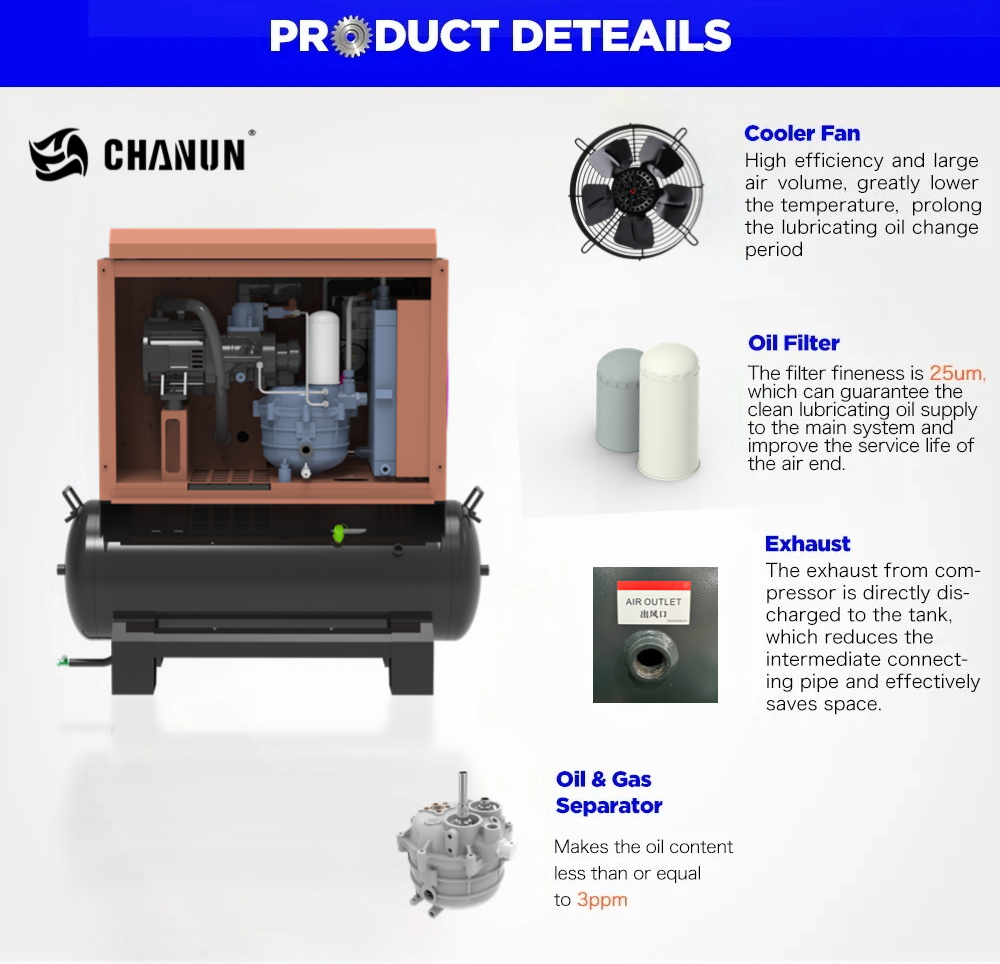

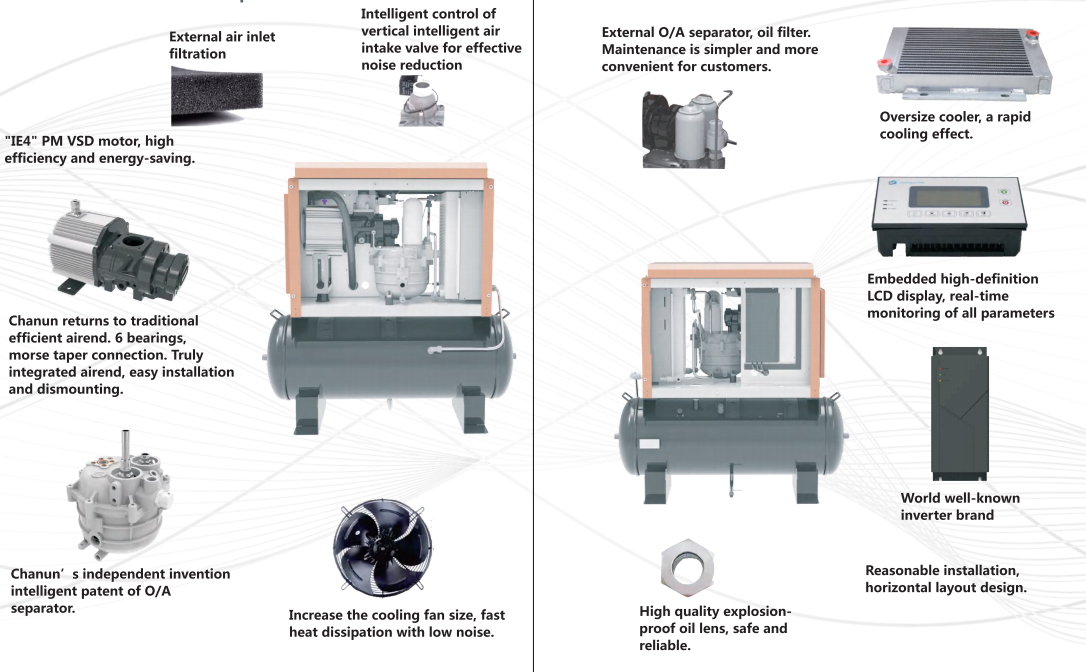

Characteristic

Durable & High-Efficiency:

Independently developed 6-bearing heavy-duty integrated airend, with airend and flange integrally connected by Morse taper to ensure long-term reliable operation.

Energy-Saving:

Equipped with 95% efficiency IE4 standard permanent magnet motor, significantly reducing energy consumption and operational costs.

Intelligent & Stable:

Features large-capacity inverter for enhanced stability, integrated with IoT module for remote monitoring and control, enabling smart operation.

Wide Voltage Adaptability:

"E" series supports normal startup at as low as 180V, suitable for various power environments, with motor overvoltage protection.

Low-Noise & User-Friendly:

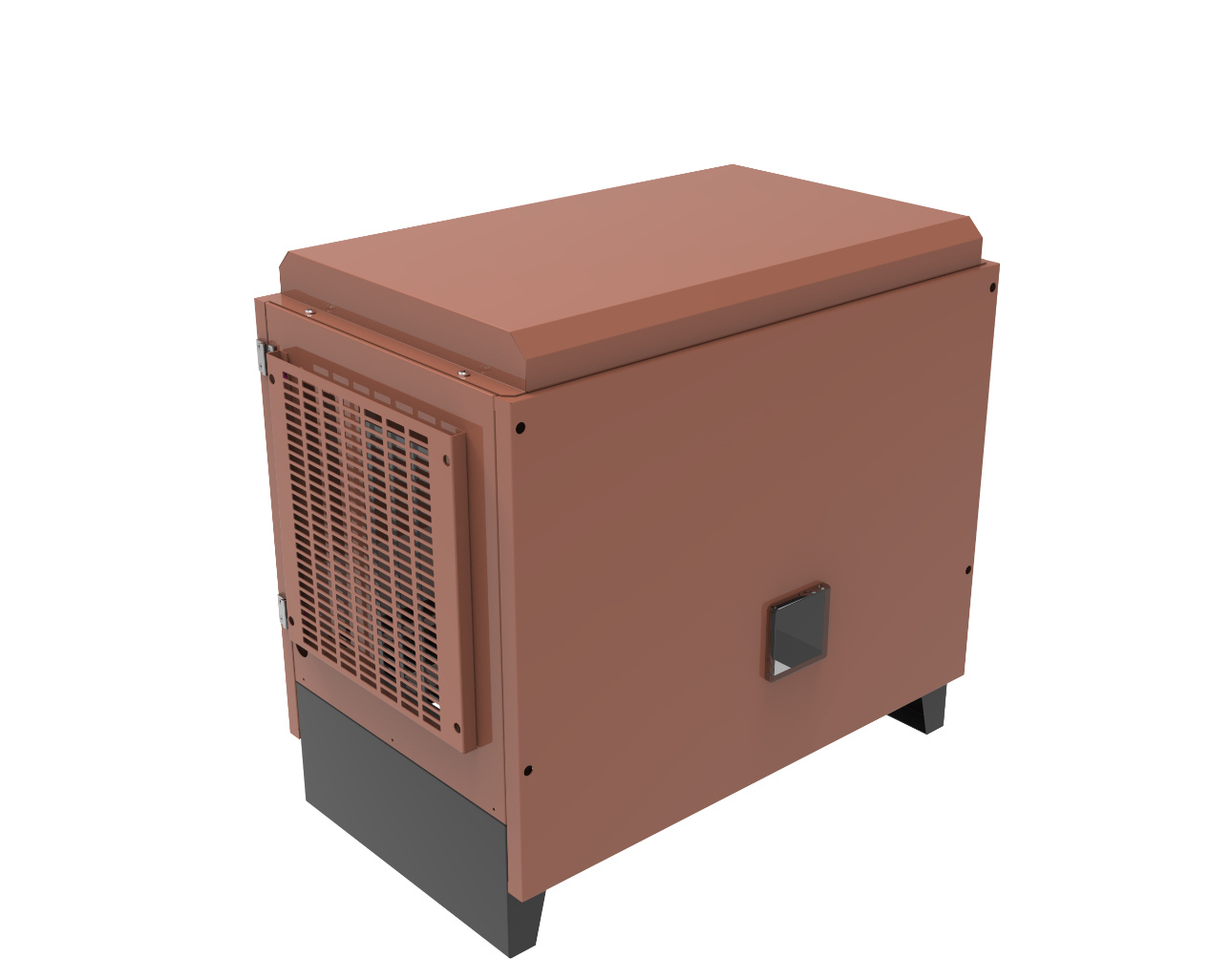

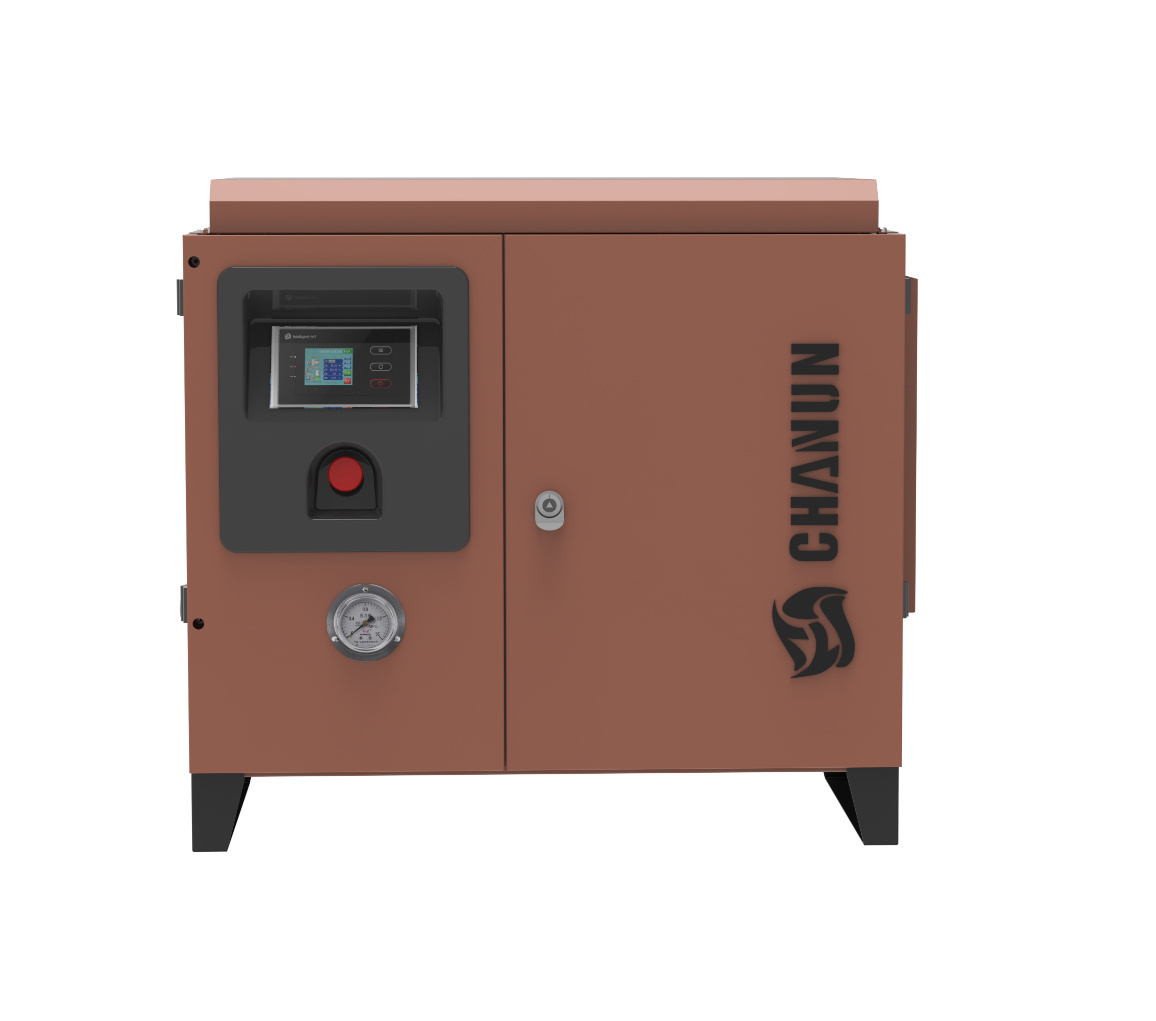

Fully enclosed cabin with automotive-grade galvanized panels reduces noise to 65±3dB; all-digital 860 control panel ensures simple operation and adjustment.

Safe & Maintenance-Free:

Three-layer safety protection system; patented 5-stage oil-gas separation technology ensures outlet oil content ≤2ppm; national standard pressure vessel air tank certified by CE & ASME. External oil distributor and filter allow DIY maintenance with a hex wrench, complemented by humanized designs like forklift feet protection, external liquid level observation hole, etc.

Specification Parameters

Model	Power kW	Horse Power HP	Voltage V	Bar bar	Displacement L/min	Air vessel L	Dimension mm	Outlet Size
C3EV	2.2	3	220V/380V	8	200-260	/	800540755	G1/2
				10	200-220
C5EV	3.7	5	220V/380V	8	200-400	/	800540755
				10	175-375
				12.5	150-300
C6EV	4.5	6	220V/380V	8	250-500	/	800540755
				10	250-420
				12.5	250-360
C7EV	5.5	7	220V/380V	8	300-700	/	800540755
				10	300-550
				12.5	300-420
				16	150-300
C10EV	7.5	10	220V/380V	8	490-980	/	920600870
				10	400-900
				12.5	400-800
				16	300-600
C12EV	9	12	220V/380V	8	600-1200	/	920600870
				10	500-1000
				12.5	425-850
				16	350-700
