E2 Screw Air Compressor Oil-lubricated

WhatsApp:

86 13862059949

Product description

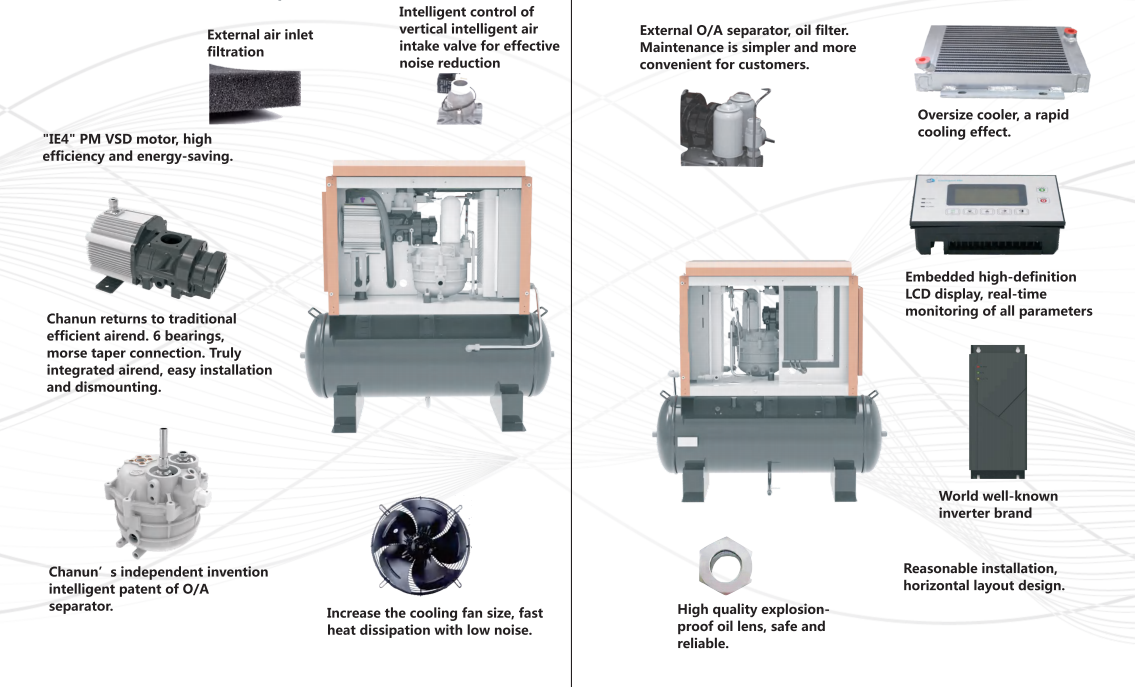

Characteristic

1.Durable: Chanun independently developed and produced 6 bearings high efficiency Airend, and the airend and flange are integrated and connected by Morse taper for heavy-duty integrated airend
2.Energy saving: 95% efficiency permanent magnet motor, reaching IE4 standard. 3.Stability: larger inverter, better stability and with the Internet of Things module, remote control and monitoring is more convenient.
4.Wide voltage: Chanun 'E' series air compressors ensure that you can use compressors as low as 180V for normal start-up operation and never burn the motor.
5.Easy to control: Using the all-digital 860 control panel, it is simple to operate and easy to adjust.
6.Low noise: It uses a fully enclosed cabin with automotive grade galvanized panels, reducing the noise to 65±3dB.
7.Adequate filtration: The oil and air separator is designed by Chanun’s R&D team with our Chanun patent, with a 5-fold separation oil and gas system, the oil content of the outlet is lower ≤ 2ppm
8.Constant pressure: The effect of constant pressure is achieved by permanent magnet frequency conversion technology, which enables the air compressor to maintain a smooth air supply output.
9.Gas storage tank: National standard gas storage tank with pressure vessel certificate. We have achieved CE and ASME verification regarding Air tanks.
10.Safety: 3 layers of protection, no security risks.
11.humanized: limit forklift feet with protective control face frame, external liquid level observation hole, pressure double display, stainless steel door lock, air inlet pre-filtering, extended drain valve.
12.Easy maintenance: external oil distributor and oil filter, simple disassembly and installation only need an internal 6 angle wrench, no need for professional staff, can be maintained by themselves.

Specification Parameters

Model	Power kW	Horse Power HP	Voltage V		Bar bar	Displacement L/min	Air vessel L	Dimension mm	Outlet Size
C3E2	2.2	3	220V/380V	8	200-260	100	10755401110	G1/2
				10	200-220
C5E2	3.7	5	220V/380V	8	200-400	100	10755401110
				10	175-375
				12.5	150-300
C6E2	4.5	6	220V/380V	8	250-500	100	10755401110
				10	250-420
				12.5	250-360
C7E2	5.5	7	220V/380V	8	300-700	100	10755401110
				10	300-550
				12.5	300-420
				16	150-300
C10E2	7.5	10	220V/380V	8	490-980	200	13005401210
				10	400-900
				12.5	400-800
				16	300-600
C12E2	9	12	220V/380V	8	600-1200	200	13005401210
				10	500-1000
				12.5	425-850
				16	350-700
