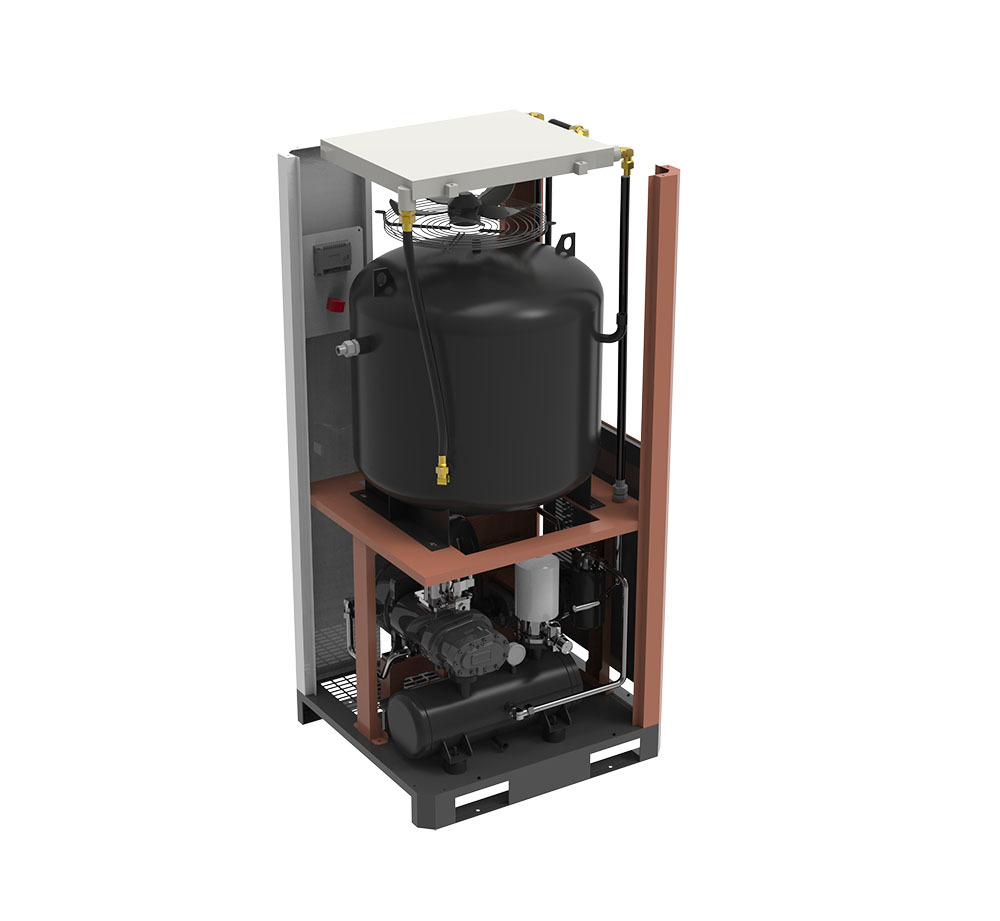

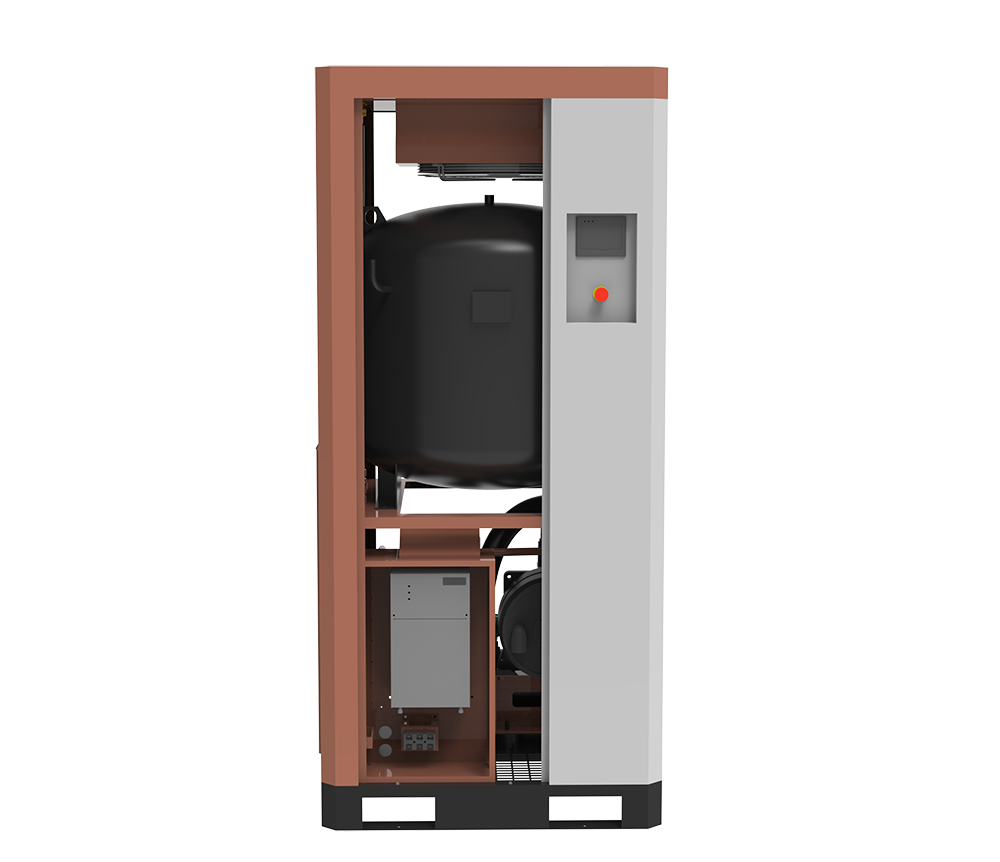

K2 Screw Air Compressor Oil-lubricated

WhatsApp:

86 13862059949

Product description

Characteristic

1.Durable: Chanun independently developed and produced 6 bearings high efficiency Airend, and the airend and flange are integrated and connected by Morse taper for heavy-duty integrated airend
2.Energy saving: 95% efficiency permanent magnet motor, reaching IE4 standard. 3.Stability: larger inverter, better stability and with the Internet of Things module, remote control and monitoring is more convenient.
4.Wide voltage: Chanun 'E' series air compressors ensure that you can use compressors as low as 180V for normal start-up operation and never burn the motor.
5.Easy to control: Using the all-digital 860 control panel, it is simple to operate and easy to adjust.
6.Low noise: It uses a fully enclosed cabin with automotive grade galvanized panels, reducing the noise to 65±3dB.
7.Adequate filtration: The oil and air separator is designed by Chanun’s R&D team with our Chanun patent, with a 5-fold separation oil and gas system, the oil content of the outlet is lower ≤ 2ppm
8.Constant pressure: The effect of constant pressure is achieved by permanent magnet frequency conversion technology, which enables the air compressor to maintain a smooth air supply output.
9.Gas storage tank: National standard gas storage tank with pressure vessel certificate. We have achieved CE and ASME verification regarding Air tanks.
10.Safety: 3 layers of protection, no security risks.
11.humanized: limit forklift feet with protective control face frame, external liquid level observation hole, pressure double display, stainless steel door lock, air inlet pre-filtering, extended drain valve.
12.Easy maintenance: external oil distributor and oil filter, simple disassembly and installation only need an internal 6 angle wrench, no need for professional staff, can be maintained by themselves.

Specification Parameters

Model	Power kW	Horse Power HP	Voltage V	Bar bar	Displacement L/min	Air vessel L	Dimension mm	Outlet Size
C15K2	11	15	380	8	1.67	300	9008502000	G1
				10	1.46
C20K2	15	20	380	8	2.26	300	9008502000
				10	1.9
C25K2	18.5	25	380	8	2.74	300	9008502000
				10	2.3
C30K2	22	30	380	8	3.09	300	9008502000
				10	2.67
