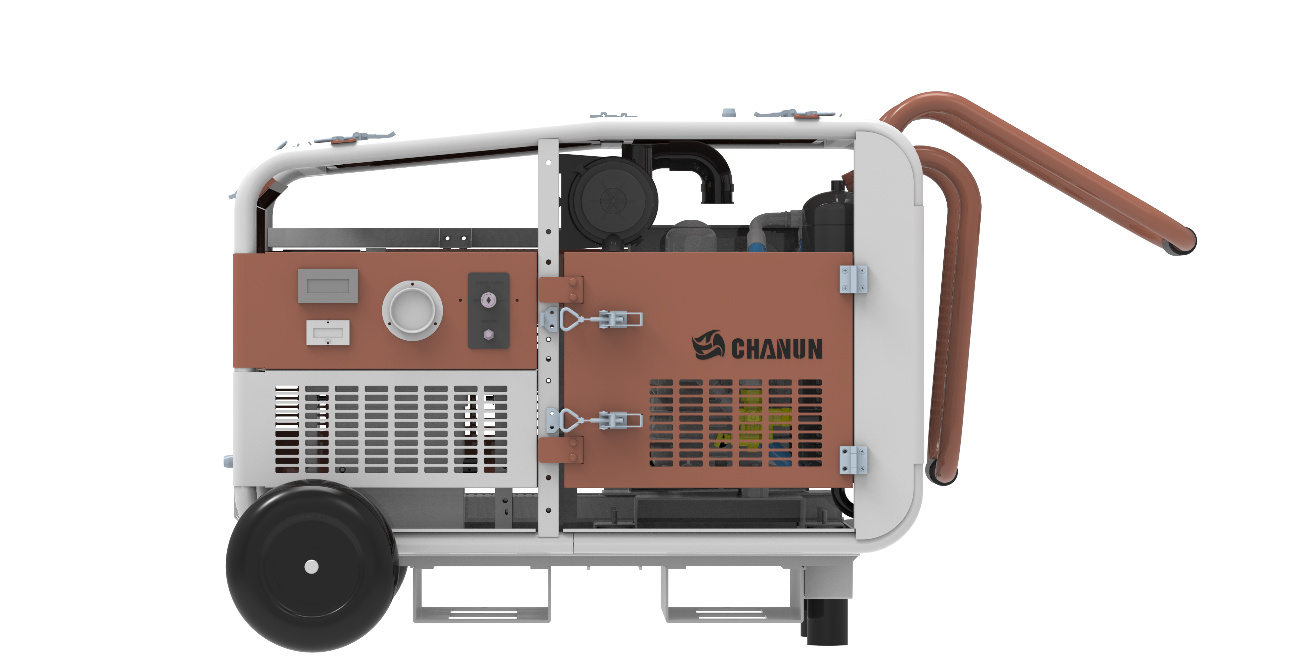

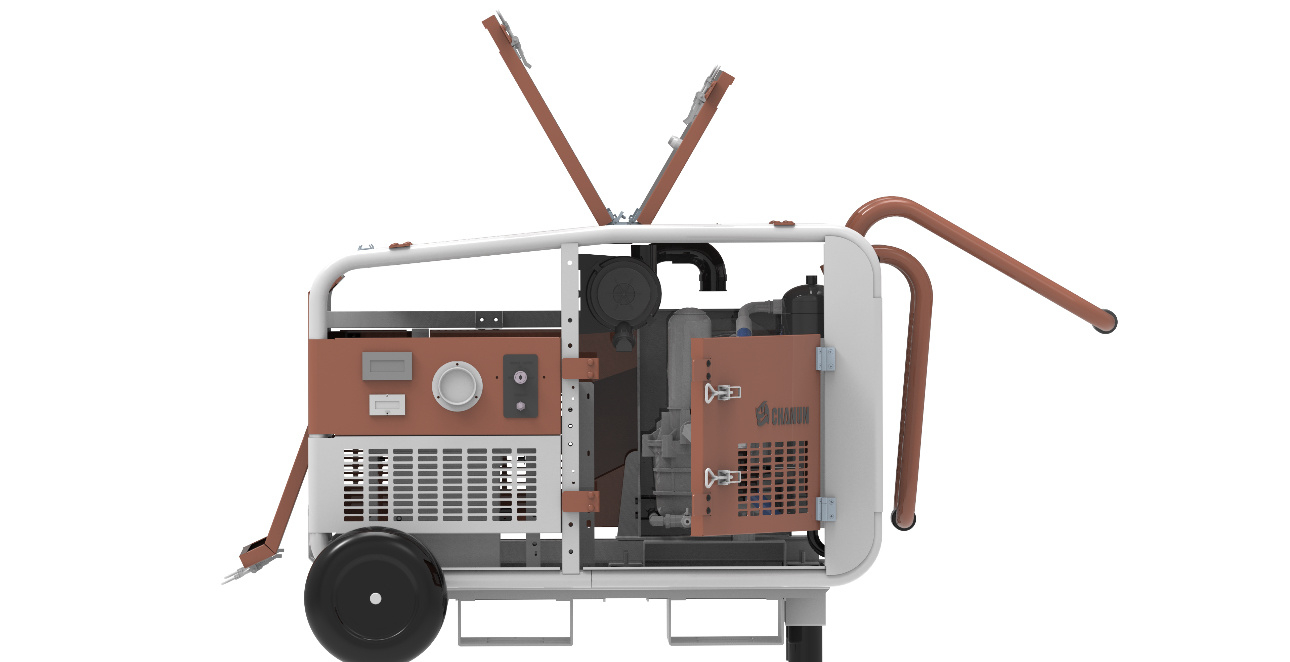

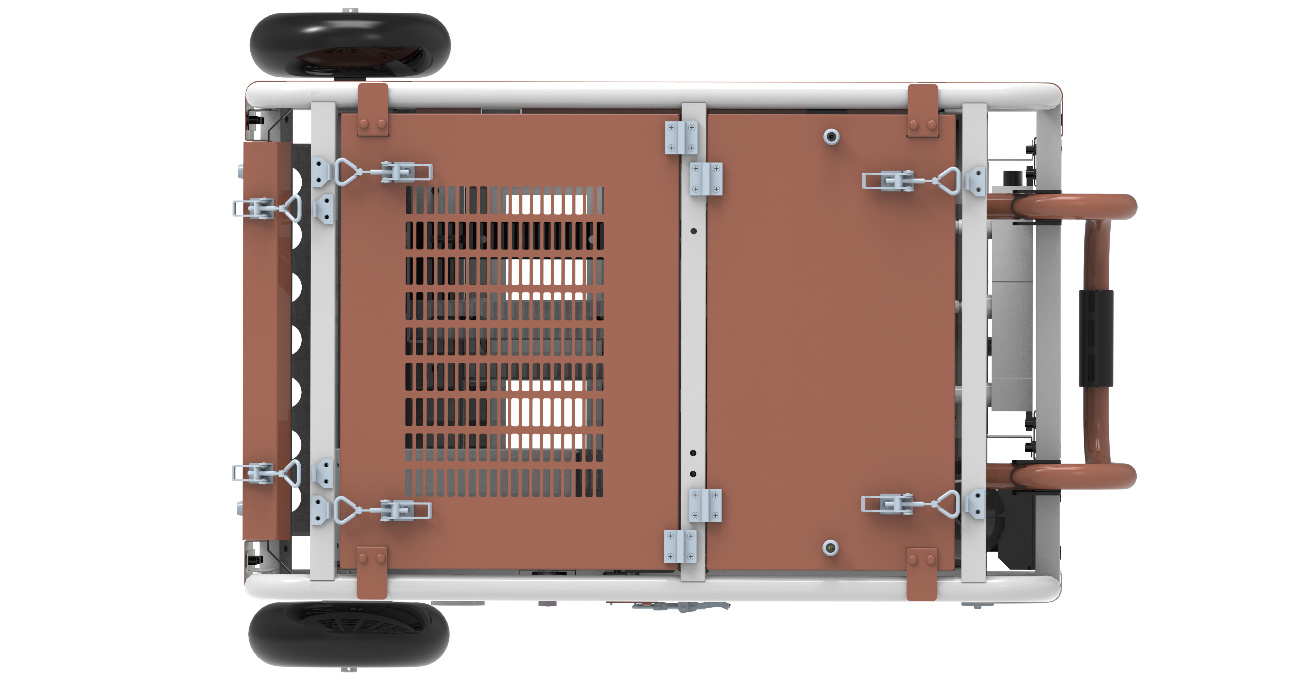

Portable Compressor C10PG

WhatsApp:

86 13862059949

Product description

Characteristic

1.Durable: Chanun independently developed and produced 6 bearings high efficiency Airend, and the airend and flange are integrated and connected by Morse taper for heavy-duty integrated airend
2.Energy saving: 95% efficiency permanent magnet motor, reaching IE4 standard. 3.Stability: larger inverter, better stability and with the Internet of Things module, remote control and monitoring is more convenient.
4.Wide voltage: Chanun 'E' series air compressors ensure that you can use compressors as low as 180V for normal start-up operation and never burn the motor.
5.Easy to control: Using the all-digital 860 control panel, it is simple to operate and easy to adjust.
6.Low noise: It uses a fully enclosed cabin with automotive grade galvanized panels, reducing the noise to 65±3dB.
7.Adequate filtration: The oil and air separator is designed by Chanun’s R&D team with our Chanun patent, with a 5-fold separation oil and gas system, the oil content of the outlet is lower ≤ 2ppm
8.Constant pressure: The effect of constant pressure is achieved by permanent magnet frequency conversion technology, which enables the air compressor to maintain a smooth air supply output.
9.Gas storage tank: National standard gas storage tank with pressure vessel certificate. We have achieved CE and ASME verification regarding Air tanks.
10.Safety: 3 layers of protection, no security risks.
11.humanized: limit forklift feet with protective control face frame, external liquid level observation hole, pressure double display, stainless steel door lock, air inlet pre-filtering, extended drain valve.
12.Easy maintenance: external oil distributor and oil filter, simple disassembly and installation only need an internal 6 angle wrench, no need for professional staff, can be maintained by themselves.

Specification Parameters

Model

Compressor

Petrol engine

Fuel tank capacity

weight

Overall
dimension

Compressed air outlet

Flow rate

Operating pressure

Brand

Type

Engine rated power

Speed at full load

m³/min

CFM

bar

PSI

rpm

C10PG

0.98

116

Honda

GX390

8.2

3600

6.1

260

1150*860*830

G1/4
