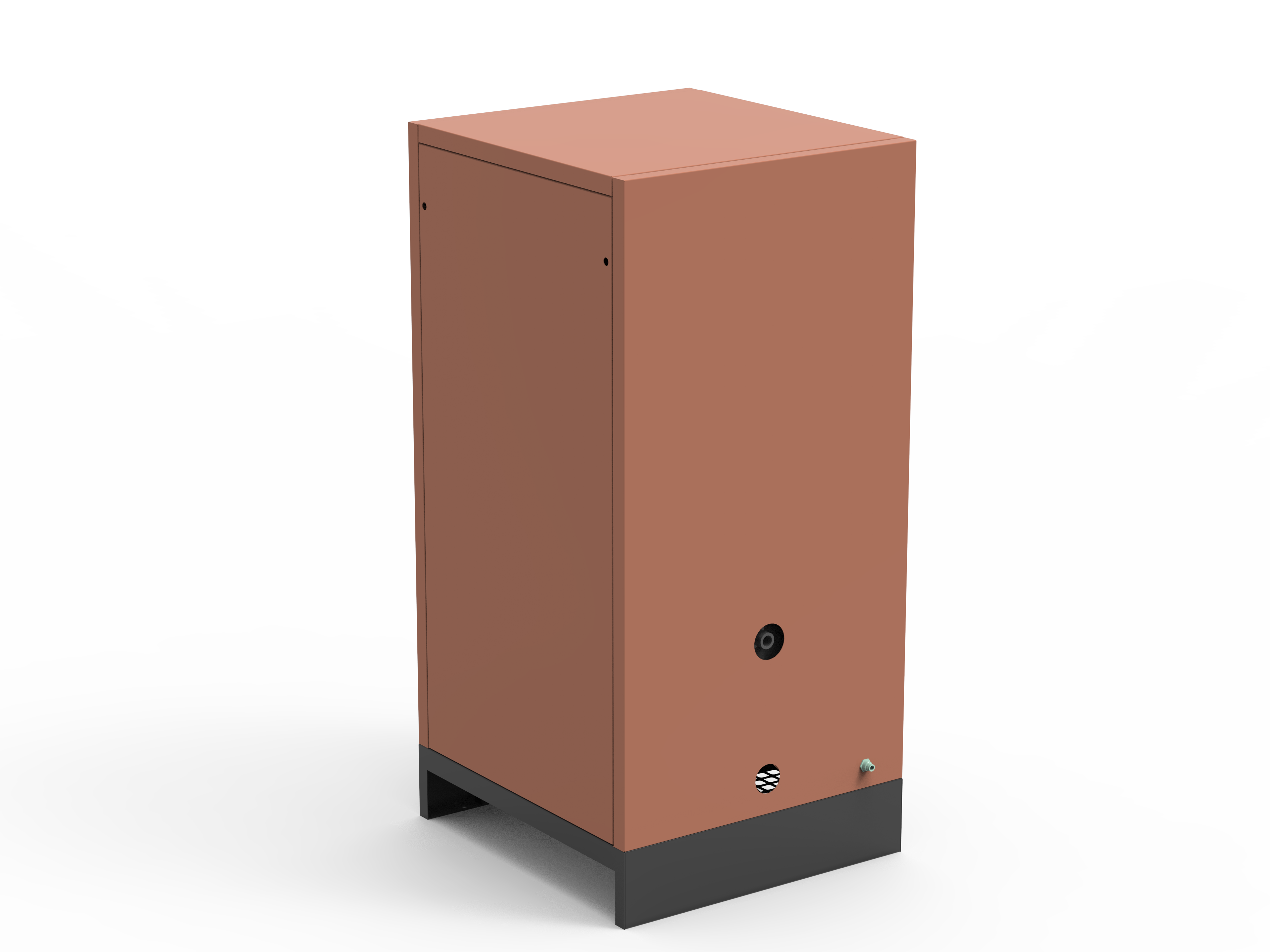

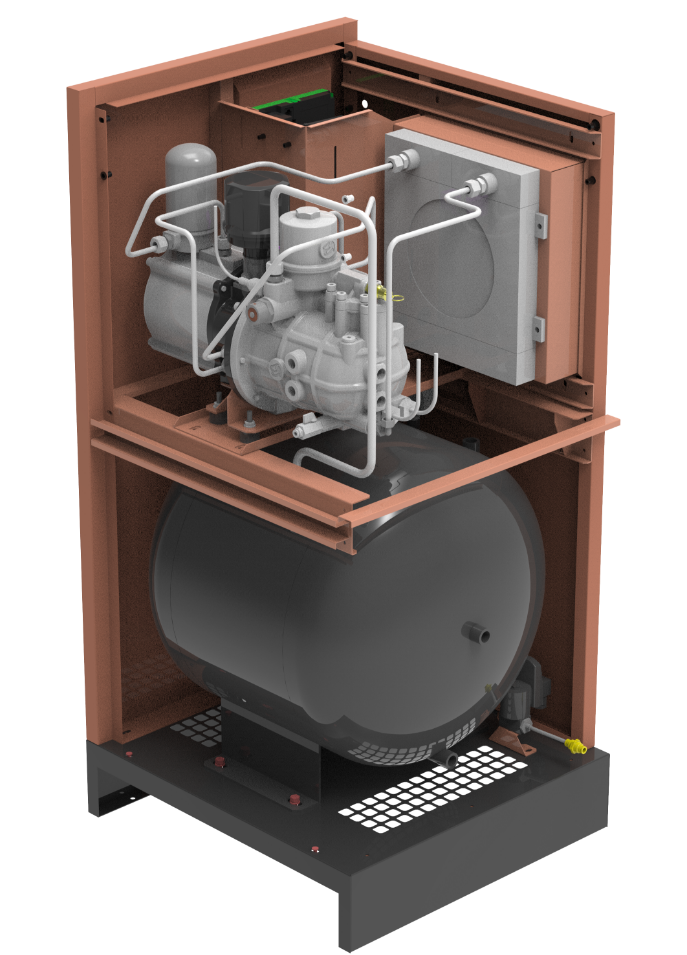

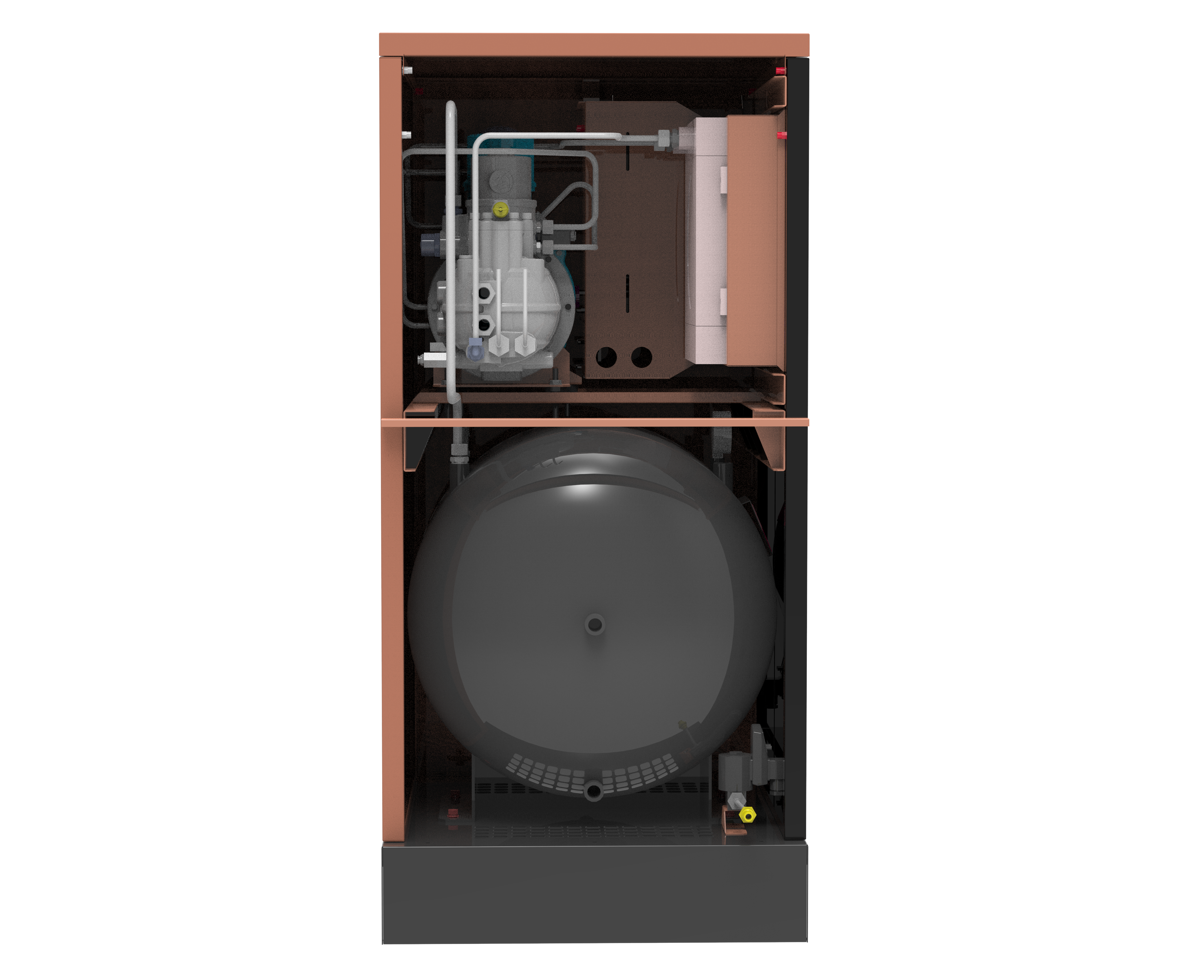

DK Screw Air Compressor Oil-lubricated (air compressor, air vessel 2 in 1)

DK Screw Air Compressor Oil-lubricated (air compressor, air vessel 2 in 1)

WhatsApp:

86 13862059949

Product description

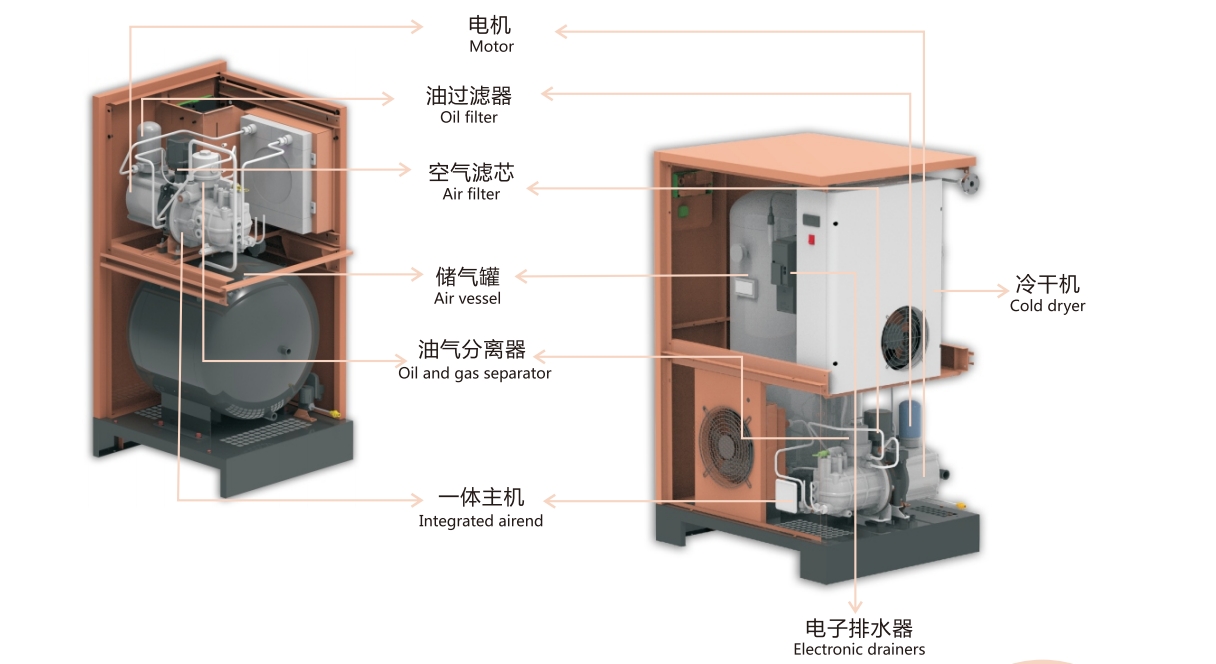

Product features:

1) New Patent Technology D-Series Airend

Completely redesigned airend rotor line,reduced noise higher load capacity,and high integration airend unit
features rusty-free warranty

2) Highly Integrated,High-Efficiency Separation Tank in Aerospace-Grade Aluminum

Featuring an advanced oil-air separation system with ultra-fine separation;the oil content at the outlet is as low as 0.5 PPM.

3) Chanun Custom Heavy-Duty Inverter

Automatically stops when pressure is reached,reducing idle time and lowering energy costs.

4) Oil-Cooled Motor(IP65)

Equipped with an ultra-IE4 permanent magnet motor,ensuring low temperature operation across
all frequencies with high starting torque,IP65 protection rating,and a sealed design resistant to
water spray and dust ingress.Uses 180℃ high-temperature-resistant permanent magnet material
to prevent demagnetization,maintenance-free bearingless design,F-class insulation rating,and
vacuum-epoxy coilencapsulation technology.

5) Chanun Self-Developed Silencing Air Filter

Provides superior air intake filtration and effective noise isolation.

6) External Oil Separator and Oil Filter

Made with 304 stainless steel oil separation cores,allowing 100%self-maintenance, reducing operational and
maintenance costs

7) Optional Auto-Drain and Precision Filter

Available with an auto-drain and precisionfilter,enabling a nealy installation-free solution that delivers close
to 100%oil-free compressed air.

Specification Parameters

Model	Power(kW)	Horse Power(HP)	Voltage(V)	Pressure (bar)	Displacement (L/min)	Air vessel (L)	Dimension(mm)	Outlet Size
C3DK	2.7	3	220/380-50	8	300	100	6355601190	G1/2
				10	280
C5DK	3.7	5	220/380-50	8	400	100	6355601190
				10	380
				12.5	300
C7DK	5.5	7	220/380-50	8	650	100	6907801290
				10	520
				12.5	380
C10DK	7.5	10	220/380-50	8	980	100	6907801290
				10	780
				12.5	650
C15DK	11	15	380-50	8	1300	270	70011701485	G1
				10	1150
				12.5	1020
C20DK	15	20	380-50	8	1900	270	70011701485
				10	1510
				12.5	1280
