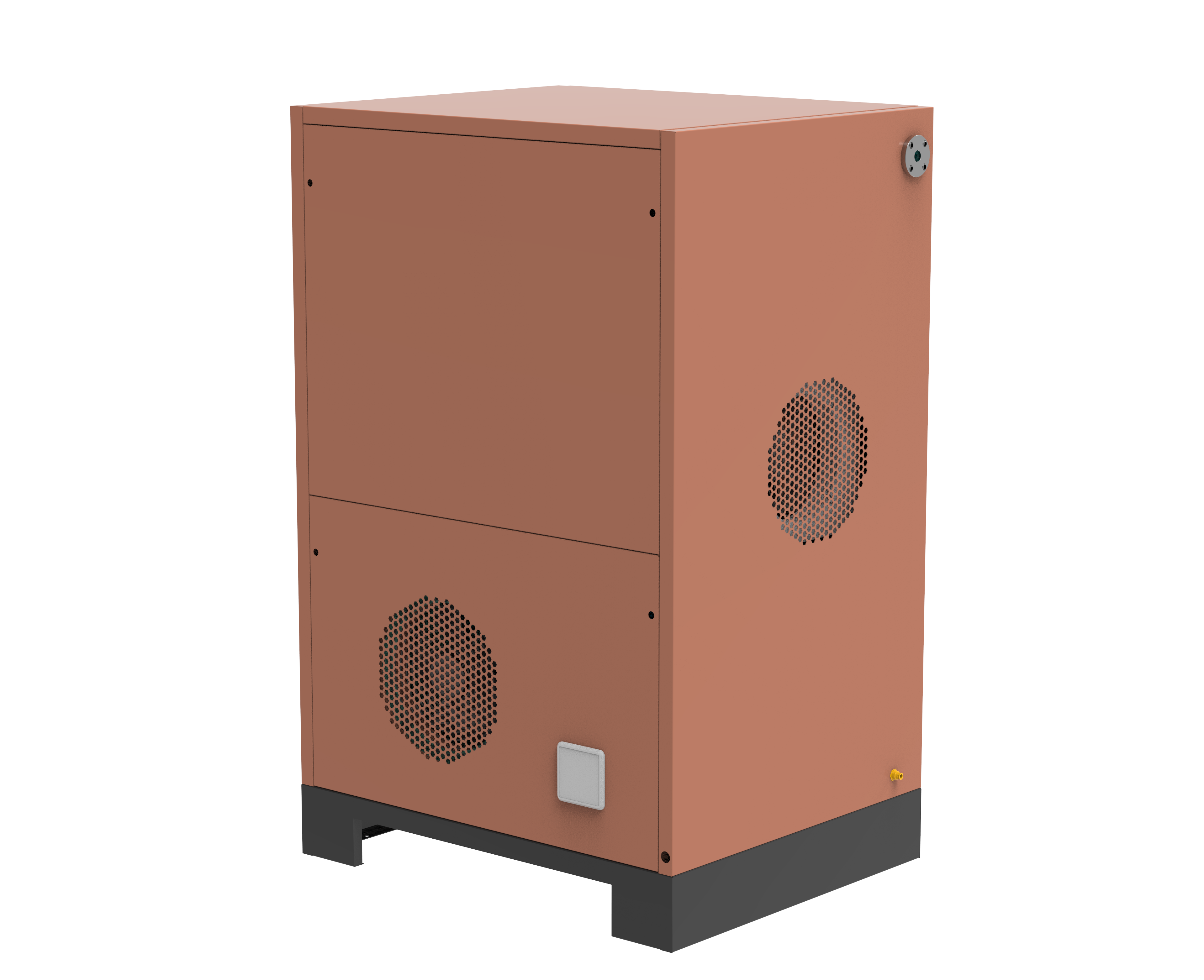

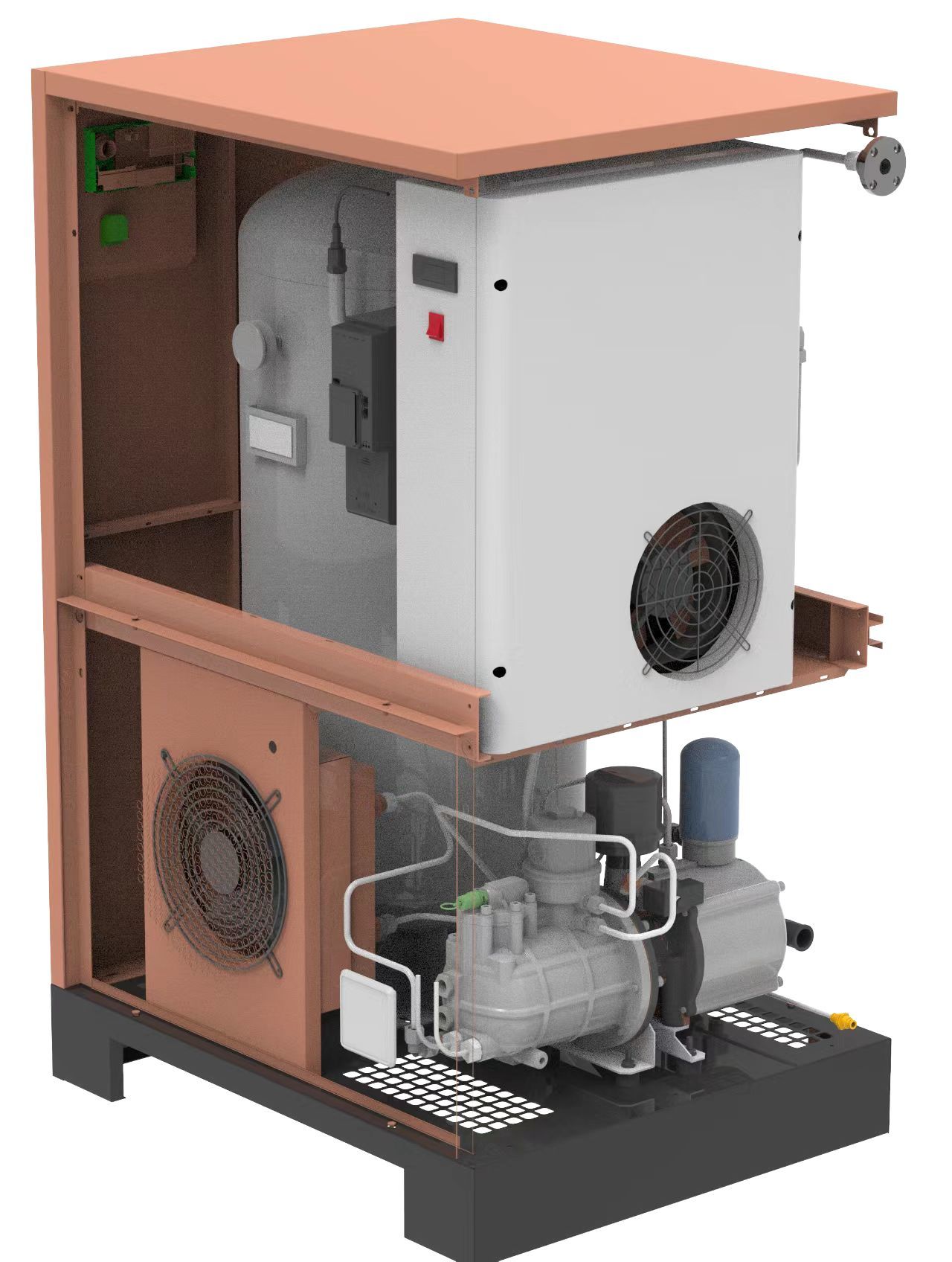

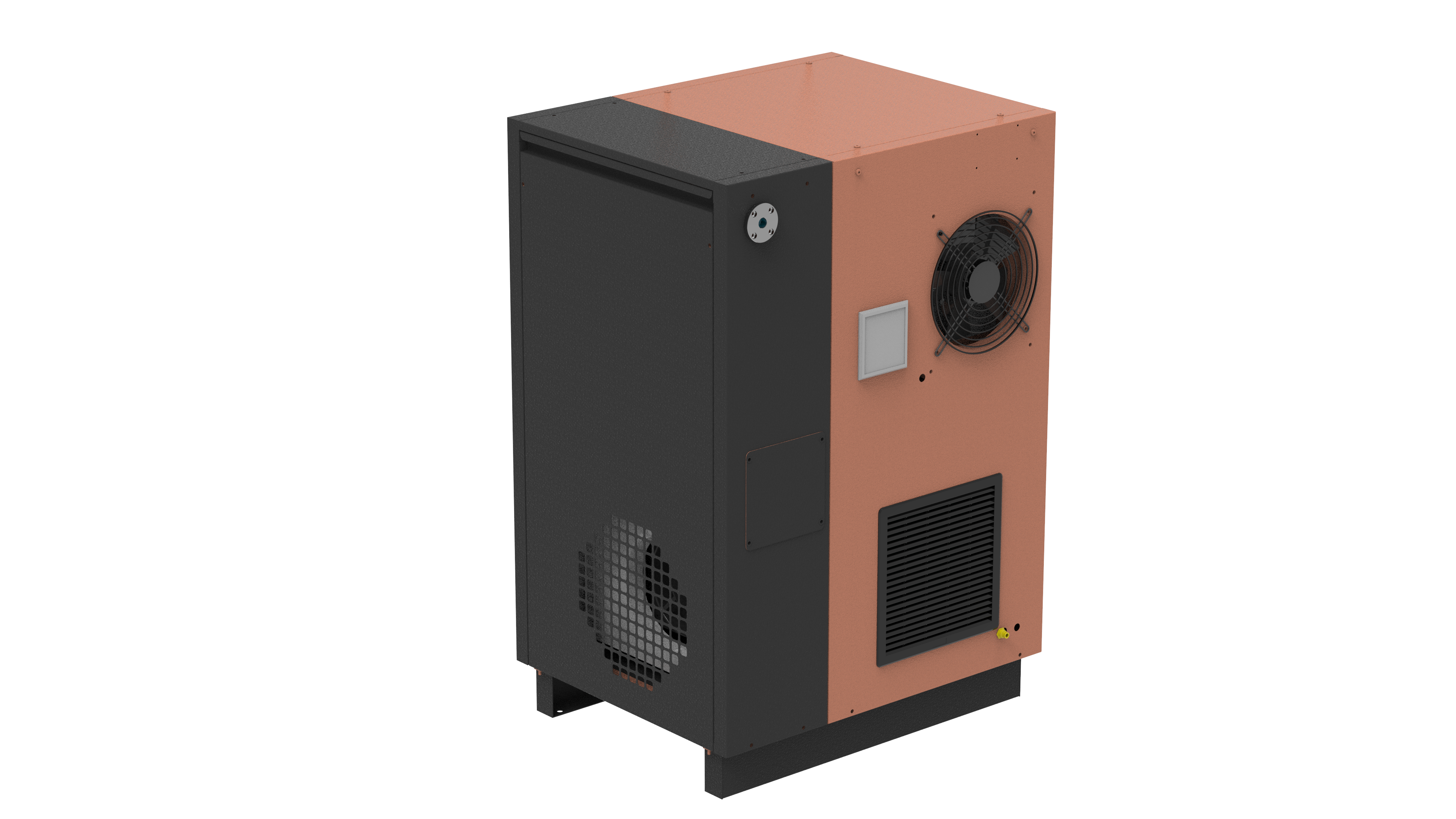

DKF Screw Air Compressor Oil-lubricated

WhatsApp:

86 13862059949

Product description

Product features:

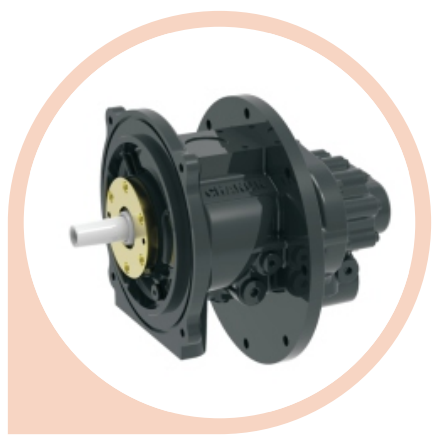

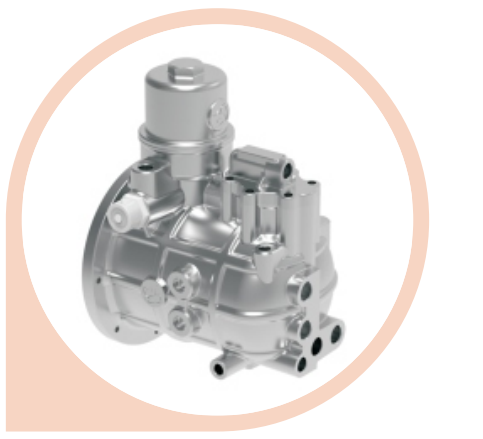

1) New Patent Technology D-Series Airend

Completely redesigned airend rotor line,reduced noise higher load capacity,and high integration airend unit
features rusty-free warranty

2) Highly Integrated,High-Efficiency Separation Tank in Aerospace-Grade Aluminum

Featuring an advanced oil-air separation system with ultra-fine separation;the oil content at the outlet is as low as 0.5 PPM.

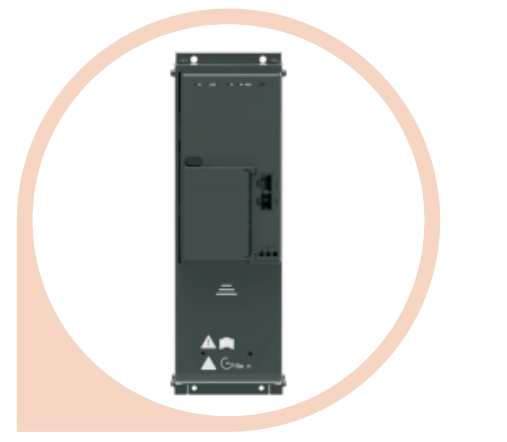

3) Chanun Custom Heavy-Duty Inverter

Automatically stops when pressure is reached,reducing idle time and lowering energy costs.

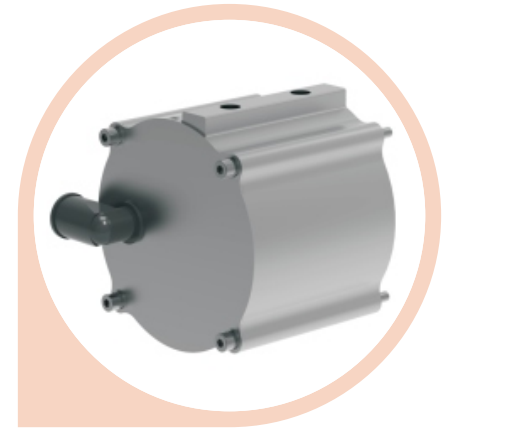

4) Oil-Cooled Motor(IP65)

Equipped with an ultra-IE4 permanent magnet motor,ensuring low temperature operation across
all frequencies with high starting torque,IP65 protection rating,and a sealed design resistant to
water spray and dust ingress.Uses 180℃ high-temperature-resistant permanent magnet material
to prevent demagnetization,maintenance-free bearingless design,F-class insulation rating,and
vacuum-epoxy coilencapsulation technology.

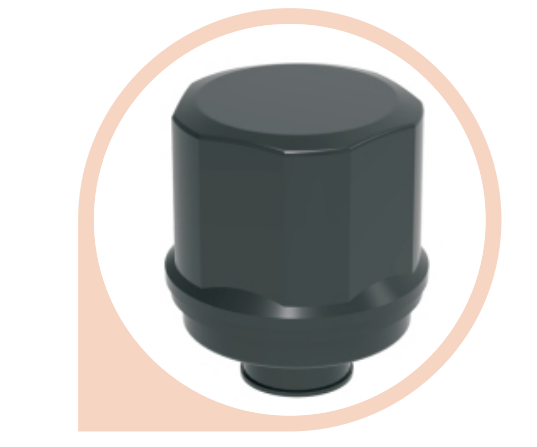

5) Chanun Self-Developed Silencing Air Filter

Provides superior air intake filtration and effective noise isolation.

6) External Oil Separator and Oil Filter

Made with 304 stainless steel oil separation cores,allowing 100%self-maintenance, reducing operational and
maintenance costs

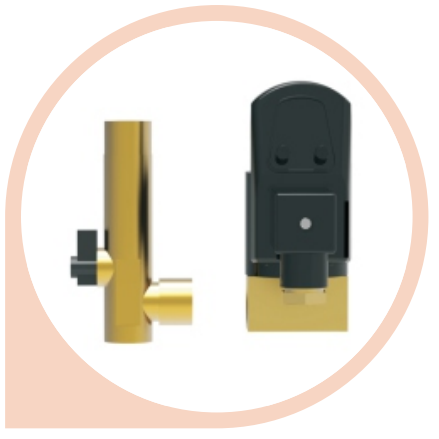

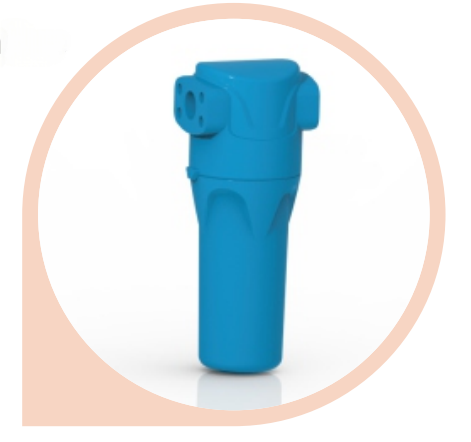

7) Optional Auto-Drain and Precision Filter

Available with an auto-drain and precisionfilter,enabling a nealy installation-free solution that delivers close
to 100%oil-free compressed air.

Specification Parameters

Model	Power (kW)	Horse Power (HP)	Voltage (V)	Pressure(Bar)	Displacement (L/min)	Air vessel (L)	Dimension (mm)	Outlet Size
C3DKF	2.7	3	220/380-50	8	300	100	6388101190	G1/2
				10	280
C5DKF	3.7	5	220/380-50	8	400	100	6388101190
				10	380
				12.5	300
C7DKF	5.5	7	220/380-50	8	650	130	9908001310
				10	520
				12.5	380
C10DKF	7.5	10	220/380-50	8	980	130	9908001310
				10	780
				12.5	650
C15DKF	11	15	380-50	8	1300	270	102511701485	G1
				10	1150
				12.5	1020
C20DKF	15	20	380-50	8	1900	270	102511701485
				10	1510
				12.5	1280
