TC Two Stage Screw Air Compressor

WhatsApp:

86 13862059949

Product description

Zero oil leakage:

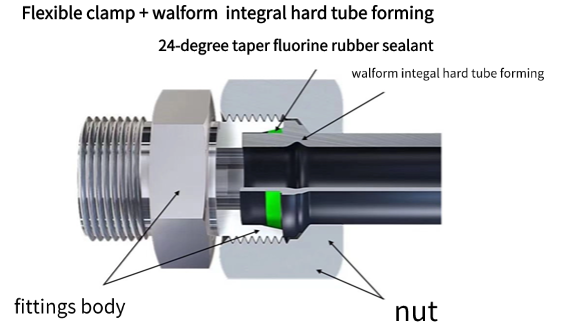

(1) The pipeline uses the walform process, with all hard pipes formed in one piece and extruded at once, plus a 24-degree cone rubber sealant, which can reduce vibration and absorption and prevent oil leakage.
(2) Using a flexible joint, it is semi-permanent.
(3) There are many bends in the pipeline, which can absorb vibration.
High configuration:
(1) Standard with oil-cooled motor and 8-bearing mainframe, which can be used for up to ten years.
(2) Using the industry's top configuration, Huichuan CP700 frequency converter.
(3) Stainless steel explosion-proof oil viewing mirror.
Energy saving:
(1) First-class energy efficiency motor.
(2) Cloud monitoring can realize unattended air compressor stations.
Maintenance:
(1) The maintenance cycle is the first maintenance for 500 hours, and the subsequent 3000 hours. It supports independent maintenance, and the oil filter and air filter use the original Donaldson.
(2) The enlarged channel oil separator base reduces pressure loss, with a maximum processing capacity of 8m3. The oil quantity is 15- 18L.

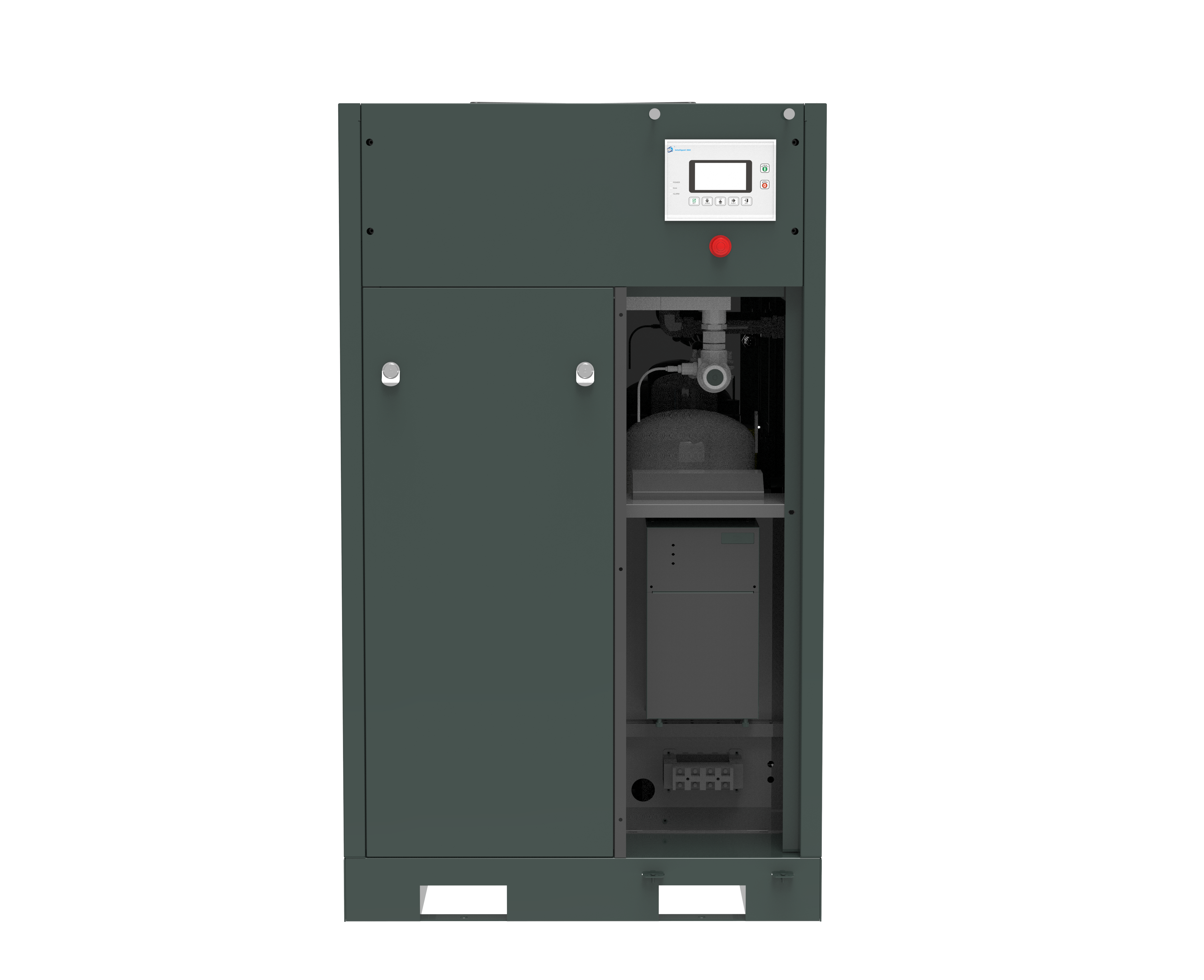

(3) The oil level mirror and pressure gauge can be viewed without opening the cabinet. (4) The oil filling hole is located on the side of the oil and gas barrel which is more convenient for maintenance with a wrench, and the standard oil separator wrench is included
(5) The intake pipe uses imported materials, with a lifespan of 6-7 years.

Specification Parameters

Model	Power kW	Horse Power HP	Voltage V	Bar bar	Displacement m³/min	Air vessel L	Dimension mm	Outlet Size
C15TC	11	15	380	8	2.05	/	88010251500	G1
				10	2.01
C20TC	15	20	380	8	2.6	/	80010251500
				10	2.56
				12.5	1.95
C30TC	22	30	380	8	3.85	/	94011501460
				10	3.8
				12.5	3.74
C50TC	37	50	380	8	7.3	/	106012751560
				10	6.19
				12.5	6.09
