- Product description
-
Product features:

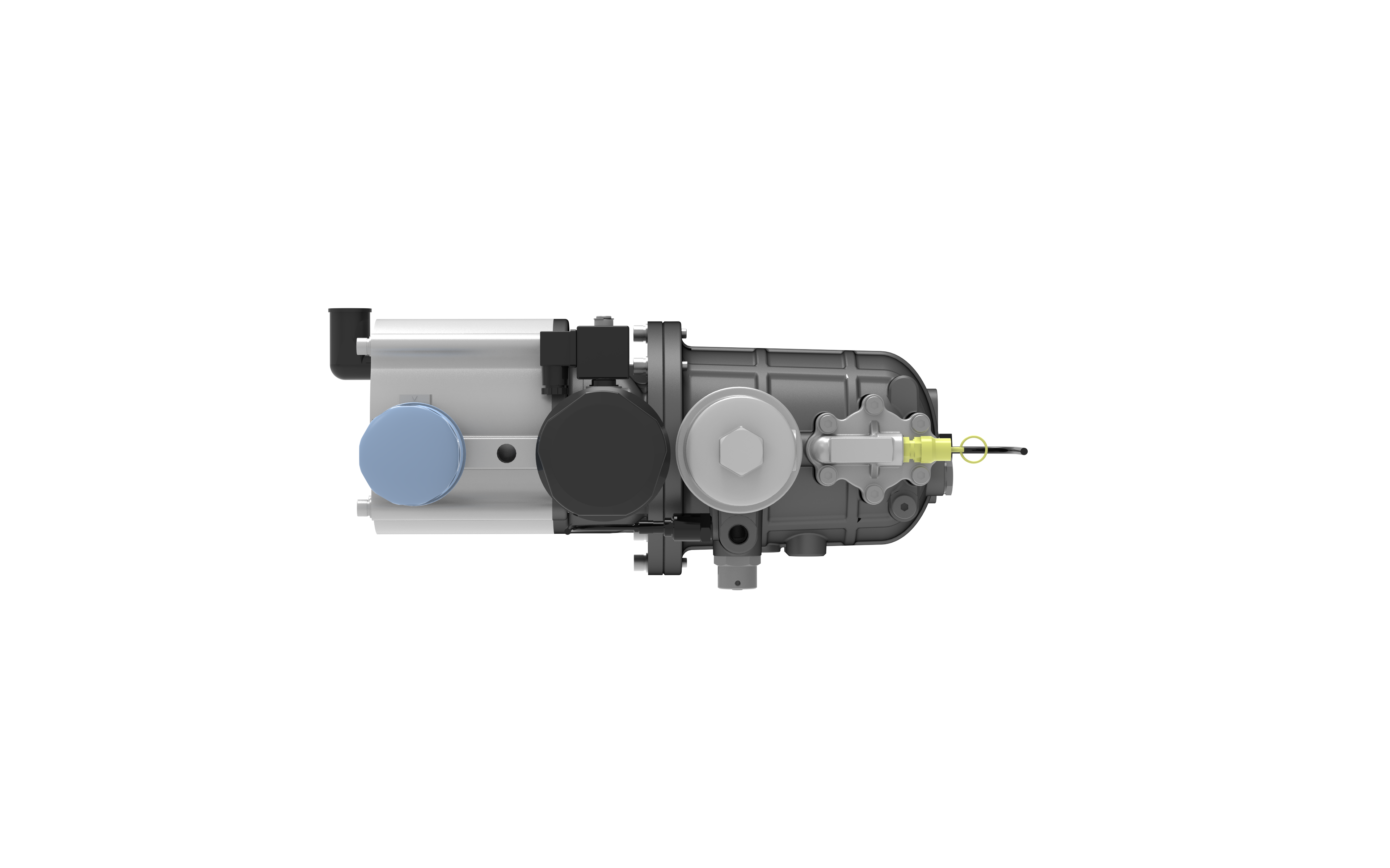

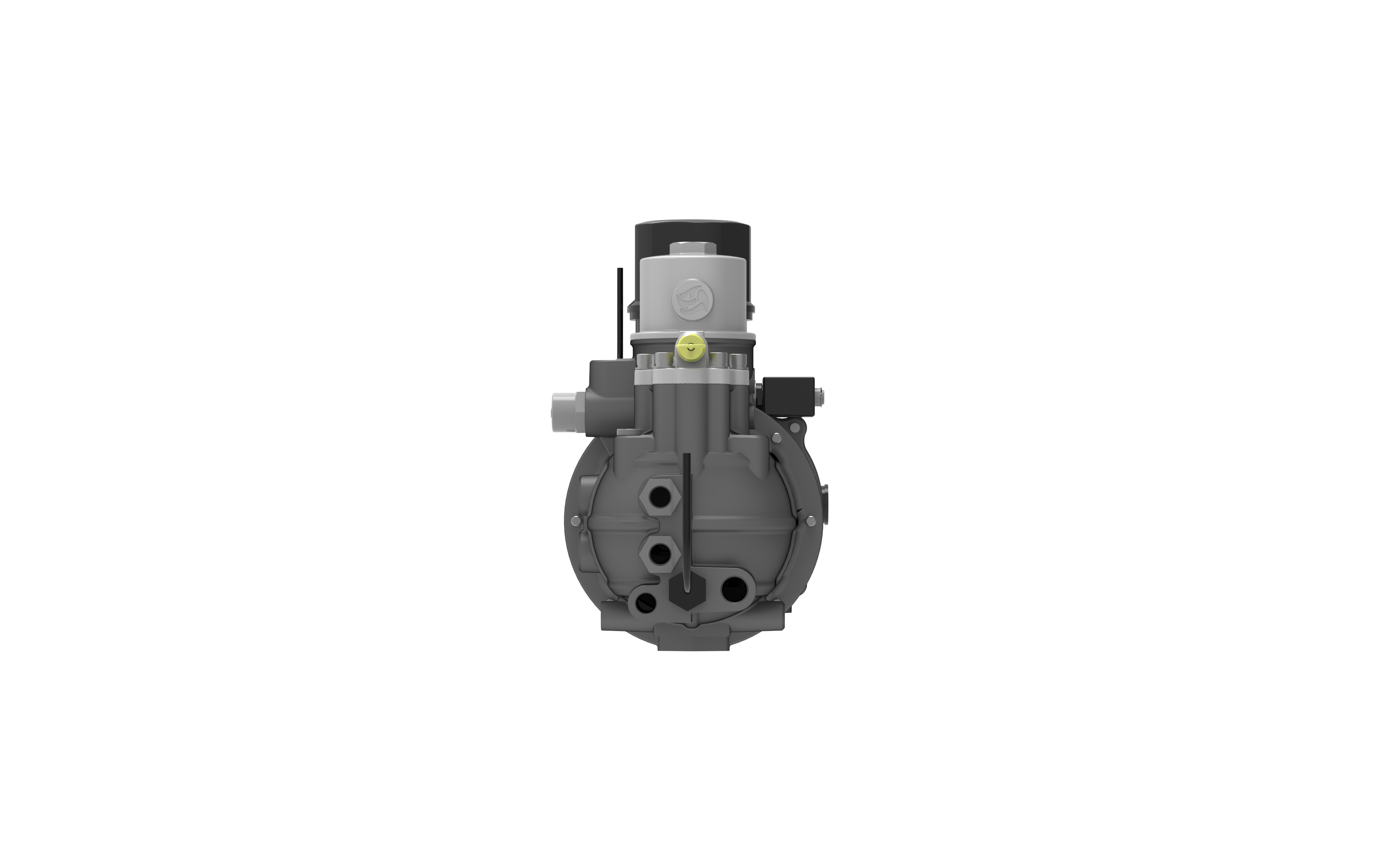

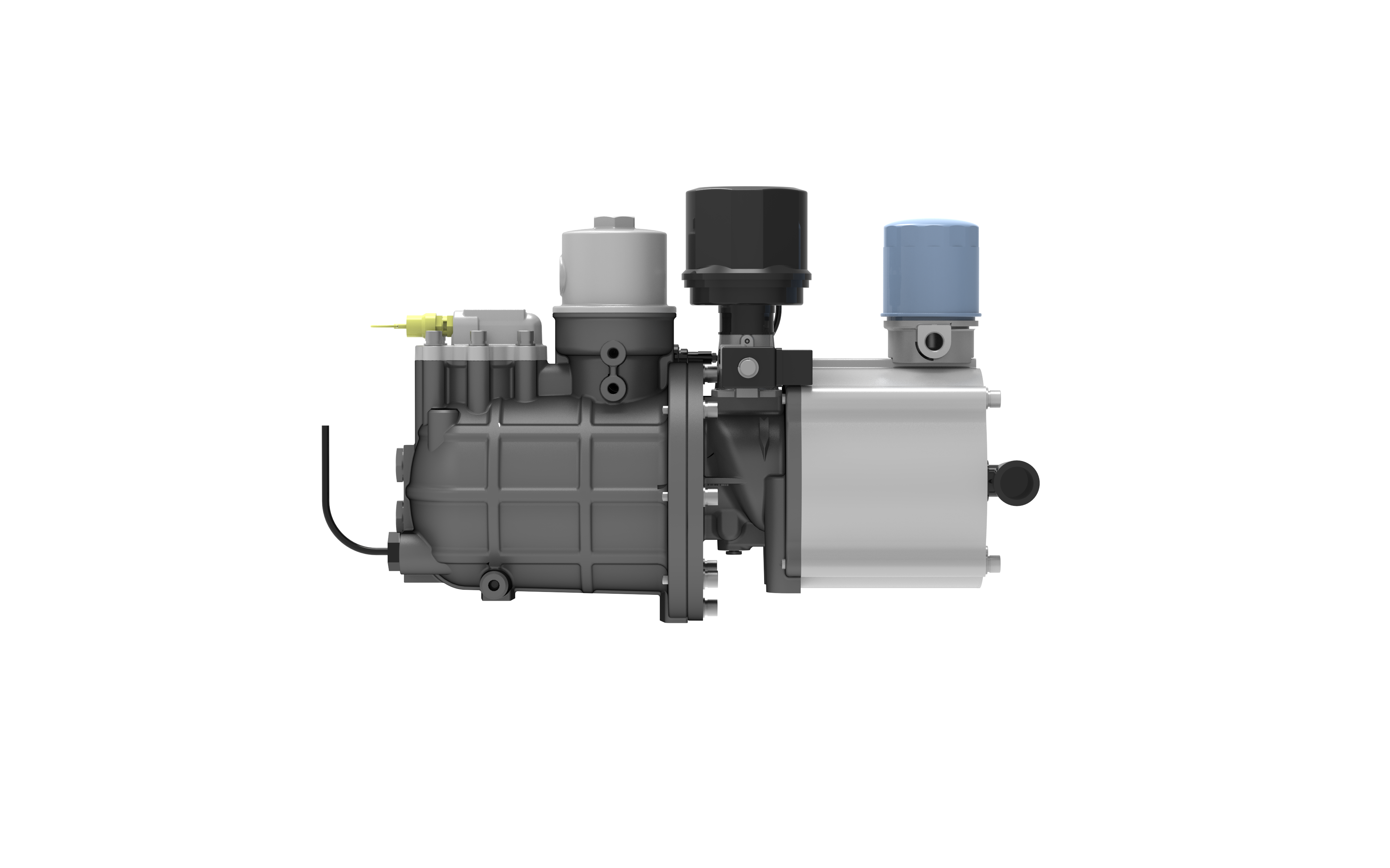

1) New Patent Technology D-Series Airend
Completely redesigned airend rotor line,reduced noise higher load capacity,and high integration airend unit
features rusty-free warranty2) Highly Integrated,High-Efficiency Separation Tank in Aerospace-Grade Aluminum
Featuring an advanced oil-air separation system with ultra-fine separation;the oil content at the outlet is as low as 0.5 PPM.
4) Oil-Cooled Motor(IP65)
Equipped with an ultra-IE4 permanent magnet motor,ensuring low temperature operation across
all frequencies with high starting torque,IP65 protection rating,and a sealed design resistant to
water spray and dust ingress.Uses 180℃ high-temperature-resistant permanent magnet material
to prevent demagnetization,maintenance-free bearingless design,F-class insulation rating,and
vacuum-epoxy coilencapsulation technology.5) Chanun Self-Developed Silencing Air Filter
Provides superior air intake filtration and effective noise isolation.
6) External Oil Separator and Oil Filter
Made with 304 stainless steel oil separation cores,allowing 100%self-maintenance, reducing operational and
maintenance costs
