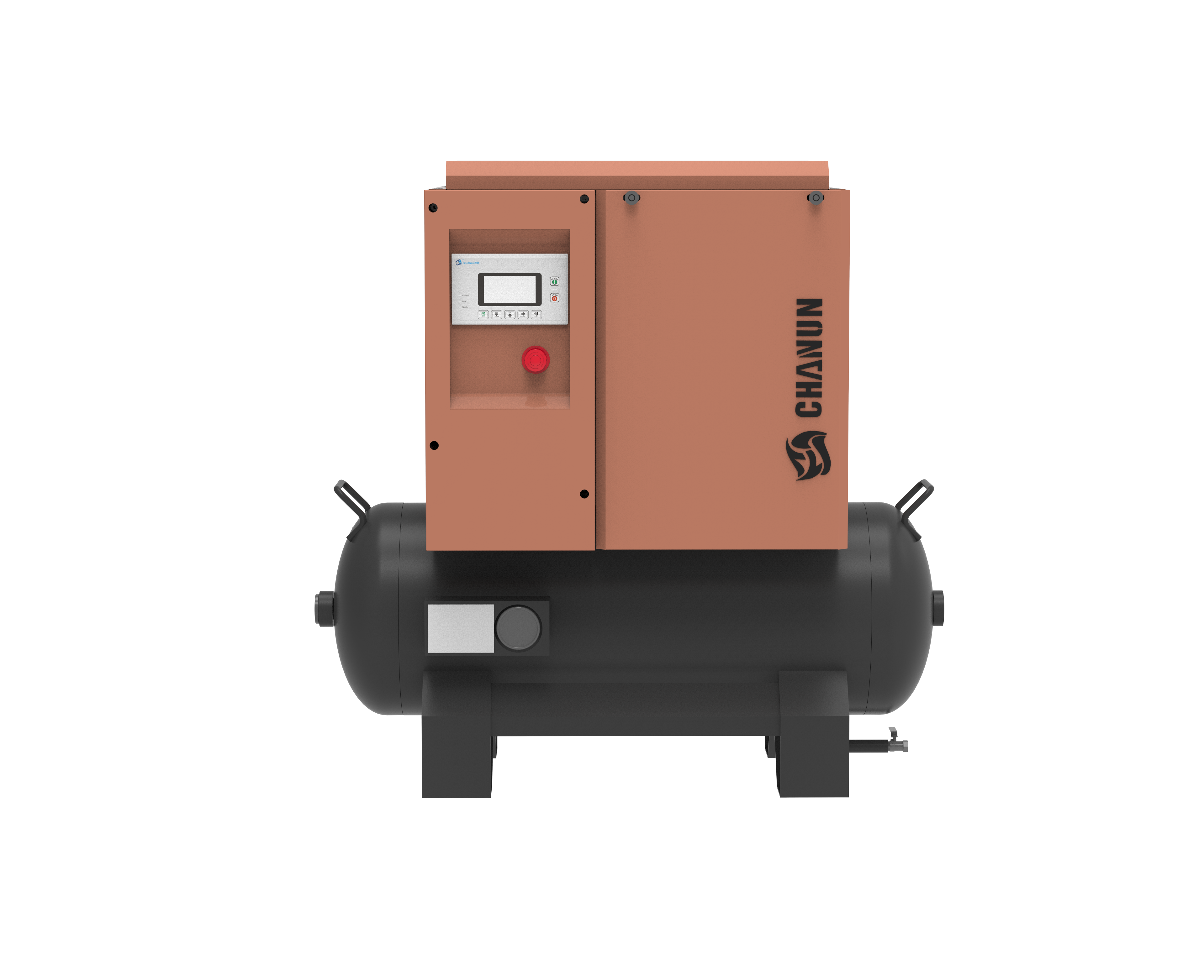

DE Oil Lubricated Screw Air Compressor (single air compressor)

DE Oil Lubricated Screw Air Compressor (single air compressor)

>New Patent Technology D-Series Airend Completely redesigned airend rotor line, reduced noise higher load capacity.and high integration airend unit features rusty-free warranty >Highly Integrated, High-Efficiency SeparationTank in Aerospace-Grade Aluminum Featuring an advanced oil-air separation system with ultra-fine separation:the oil content at the outlet is as low as 0.5 PPM. >Chanun Custom Heavv-Duty Inverter Automatically stops when pressure is reached, reducing idle time andlowering energy costs. >Oil-Cooled Motor Equipped with an ultra-lE4 permanent magnet motor, ensuring low temperature operation acrossall frequencies with high starting torque, lP65 protection rating, and a sealed design resistant towater spray and dust ingress, Uses 180"C high-temperature-resistant permanent magnet materiato prevent demagnetization, maintenance-free bearngless design, F-class insulation rating, andvacuum-epoxy coil encapsulation technology

WhatsApp:

86 13862059949

Product description

Specifications

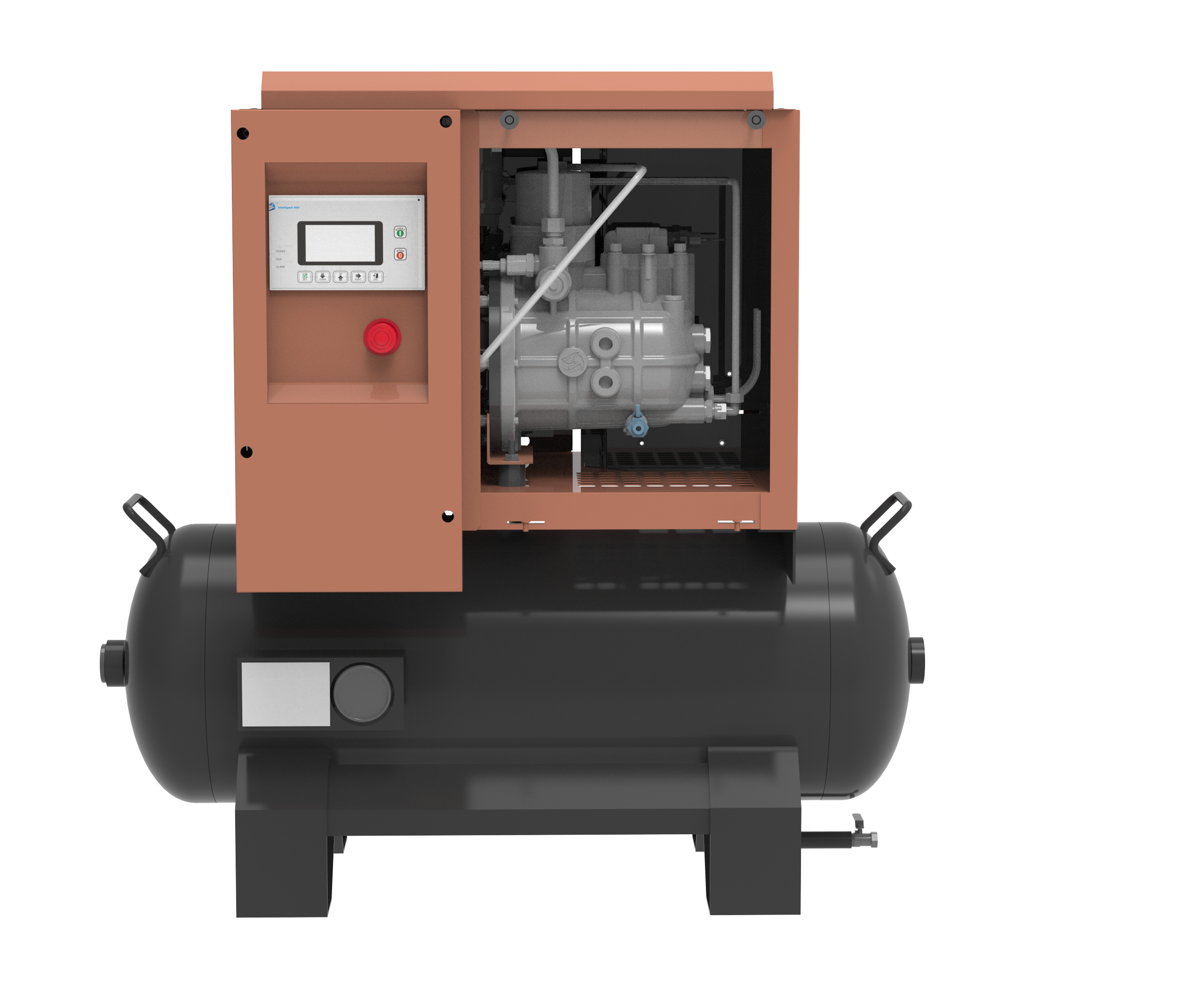

1) Newly Designed Airend Rotor System
The fully re-engineered rotor system offers lower operating noise, increased load capacity, and a highly integrated, rust-proof airend module — backed by a corrosion-free warranty.

2) Aerospace-Grade Integrated Separation Tank
Constructed from aerospace-grade aluminum, this compact tank features a high-efficiency oil-air separation system with ultra-fine separation capabilities. Oil carryover at the outlet is minimized to just 0.5 PPM.

3) Chanun Heavy-Duty Custom Inverter
Automatically shuts down once the desired pressure is achieved, effectively reducing idle time and cutting energy consumption.

4) IP65-Rated Oil-Cooled Motor
Fitted with a high-performance ultra-IE4 permanent magnet motor for efficient low-temperature operation at all frequencies. It offers high starting torque, an IP65 sealed enclosure for dust and water resistance, uses 180℃ demagnetization-resistant magnets, and features a bearingless, maintenance-free design with F-class insulation and vacuum-epoxy coil encapsulation.

5) Proprietary Noise-Reducing Air Filter by Chanun
Delivers excellent intake air filtration while significantly reducing noise levels for quieter operation.

6) External Oil Separator and Filter System
Incorporates durable 304 stainless steel oil separation cores, designed for 100% self-maintenance. This setup minimizes downtime and lowers both operational and service costs.

7) Optional Auto Drain & High-Precision Filter
Optional features include an automatic drain and precision filter, offering a nearly plug-and-play installation and achieving near oil-free compressed air output.processes.

Model	Power kW	Voltage V	Puressue bar	FAD L/min	Air vessel L	Dimension mm	Air outlet Dimension
C3DE	2.7	220/380-50	8	300	100	1110565925	G1/2
C3DE	2.7	220/380-50	10	280	100
C5DE	3.7	220/380-50	8	400	100
	3.7	220/380-50	10	380	100
	3.7	220/380-50	12.5	300	100
C6DE	4.5	220/380-50	8	500	100
	4.5	220/380-50	10	420	100
	4.5	220/380-50	12.5	360	100
C7DE	5.5	220/380-50	8	650	200	13008001170
	5.5	220/380-50	10	520	200
	5.5	220/380-50	12.5	380	200
C10DE	7.5	220/380-50	8	980	200
	7.5	220/380-50	10	780	200
	7.5	220/380-50	12.5	650	200
C15DE	11	380-50	8	1300	300	158011701400	G3/4
	11	380-50	10	1150	300
	11	380-50	12.5	1020	300
C20DE	15	380-50	8	1900	300
	15	380-50	10	1510	300
	15	380-50	12.5	1280	300

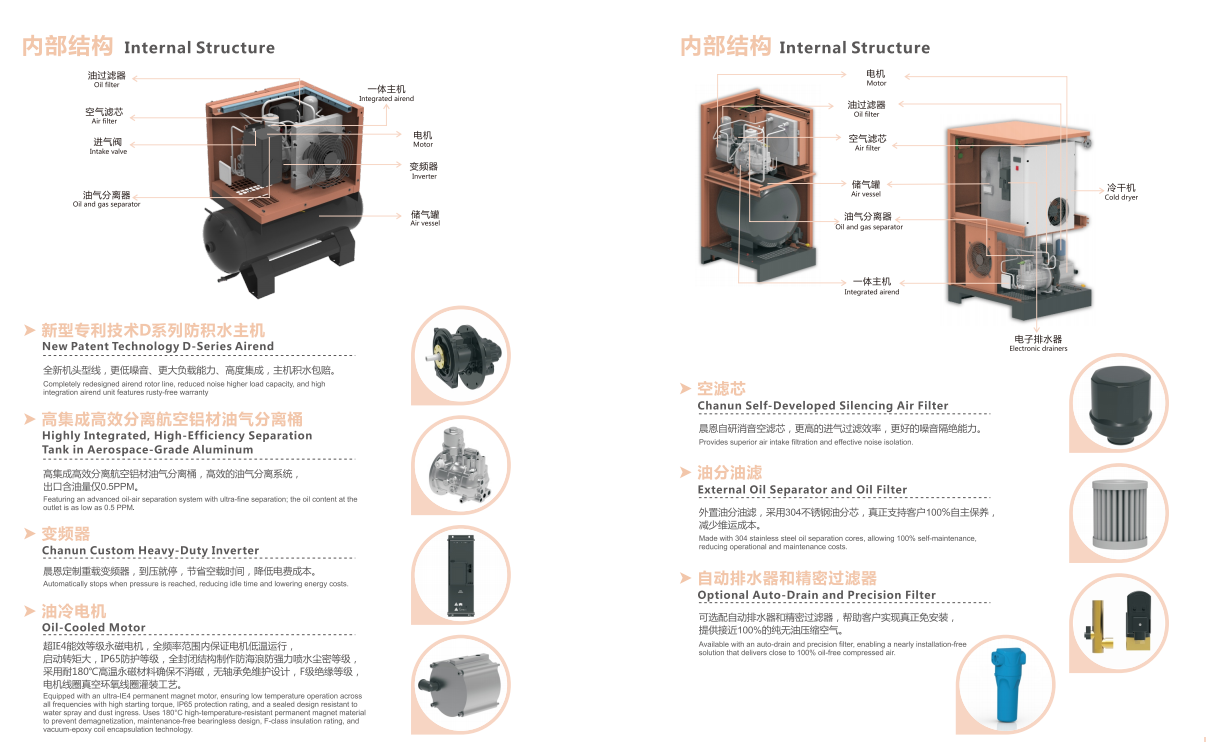

>New Patent Technology D-Series Airend
Completely redesigned airend rotor line, reduced noise higher load capacity.and high integration airend unit features rusty-free warranty
>Highly Integrated, High-Efficiency SeparationTank in Aerospace-Grade Aluminum
Featuring an advanced oil-air separation system with ultra-fine separation:the oil content at the outlet is as low as 0.5 PPM.
>Chanun Custom Heavv-Duty Inverter
Automatically stops when pressure is reached, reducing idle time andlowering energy costs.
>Oil-Cooled Motor
Equipped with an ultra-lE4 permanent magnet motor, ensuring low temperature operation acrossall frequencies with high starting torque, lP65 protection rating, and a sealed design resistant towater spray and dust ingress, Uses 180"C high-temperature-resistant permanent magnet materiato prevent demagnetization, maintenance-free bearngless design, F-class insulation rating, andvacuum-epoxy coil encapsulation technology
